Which WAT Carton Sealing Machine Should You Choose for Different SKUs and Sizes?
You're probably familiar with the process of your packaging line running mixed SKU sizes. The carton sealing machine finishes one carton type, the next SKU arrives at the feed inlet, and the line stops. A worker goes over, loosens the guide rails, adjusts the width, resets the height, tightens everything, runs a test carton, and then adjusts again. Several minutes are wasted on adjustments. Multiplying this by the number of switchovers, an hour's worth of carton sealing output is gone just like that.
In these steps, the worker is fine, the tape is fine, the carton is fine. The problem is that this machine is designed to run one carton type all day, and with your increasing business volume, this production line should have been upgraded long ago.
Before discussing the machine, one thing is worth discussing: why choose water-activated tape?
Traditional pressure-sensitive tape relies on surface contact. The adhesive layer grips the outer linerboard of the corrugated cardboard, maintaining it through initial tack. However, the adhesion remains on the surface, and under continuous load or temperature changes, surface adhesion is the first step to fail.
Water-activated tape uses a different bonding method. Starch adhesive penetrates the corrugated fibers and cures within the substrate. Once set, the tape and carton are structurally integrated. It cannot be peeled off without tearing off a layer of board. For modern packaging production lines, this fiber-level adhesive will no longer be a weak point in your carton sealing. Furthermore, water-activated tape meets the latest regulations, is environmentally friendly, and has tamper-proof properties. Using fiber-reinforced water-activated tape can also enhance the tensile strength of your packaging.
The practical impact of using this tape on machine selection is that the sealing process requires integrating a water-activated system into the tape path. The machine wets the tape, applies it, and presses in the flaps. This is a different mechanical process than pressing a dry pressure-sensitive adhesive strip onto the carton.
How to choose the right machine for your business
JL offers high-performance WAT carton sealing machines tailored to different operational needs.
| Item | KN-1717U Semi-automatic |
KN-1721R Fully-automatic |
KN-2626U Semi-automatic |
|---|---|---|---|
| Case Sealing Speed | 8-13 cases/min (Subject to case size and quality) |
8-13 cases/min (Subject to case size and quality) |
8-13 cases/min (Subject to case size and quality) |
| Machine Dimension (L × W × H) |
93" × 43.9" × 65" (236 × 112 × 165 cm) |
93" × 43.9" × 65" (236 × 112 × 165 cm) |
128" × 53" × 70" (326 × 135 × 179 cm) |
| Core Characteristics | Standard semi-automatic model for regular-sized cartons. Features manual size adjustment, handles up to 38kg, and uses 1.1kw power. Cost-effective for single-size or low-frequency changeover scenarios. | High-end fully automatic model. Core features include automatic size adaptation, touch control interface, and side-belt drive for stability. Handles up to 38kg but requires higher power (1.5kw). Ideal for mixed-size production lines. | Heavy-duty semi-automatic model for large-scale operations. Supports the largest carton dimensions (up to 66x66cm) and highest weight capacity (up to 60kg). Uses 1.1kw power. Designed for bulky and heavy cargo. |

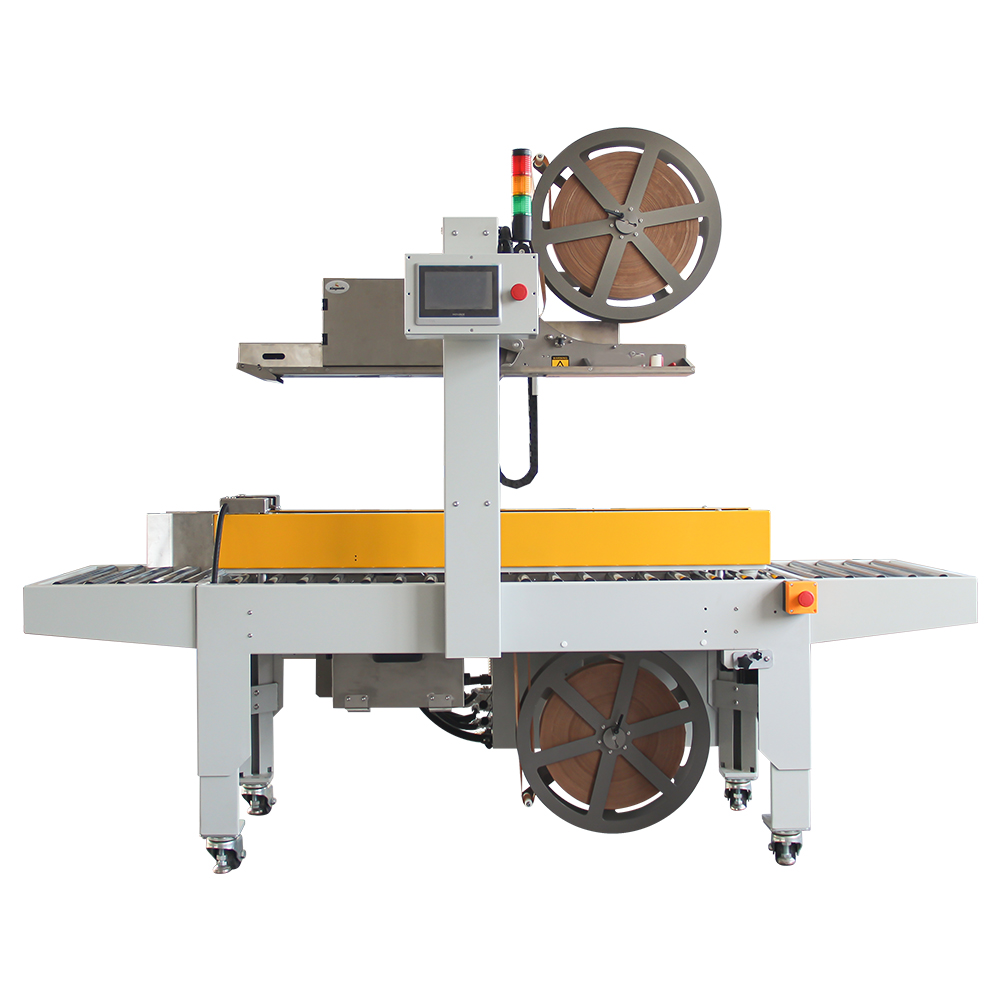

KN-1721R — High Speed Fully-Automatic WAT Case SealerKey Feature: Automatically adapts to box dimensions; Touch control interface.
The KN-1721R is our premier fully-automatic solution engineered for operations requiring rapid changeovers without manual intervention. Featuring a sophisticated touch control interface, it tracks sealed box counts and allows for convenient parameter settings. VIEW KN-1721R SPECS → |
 |

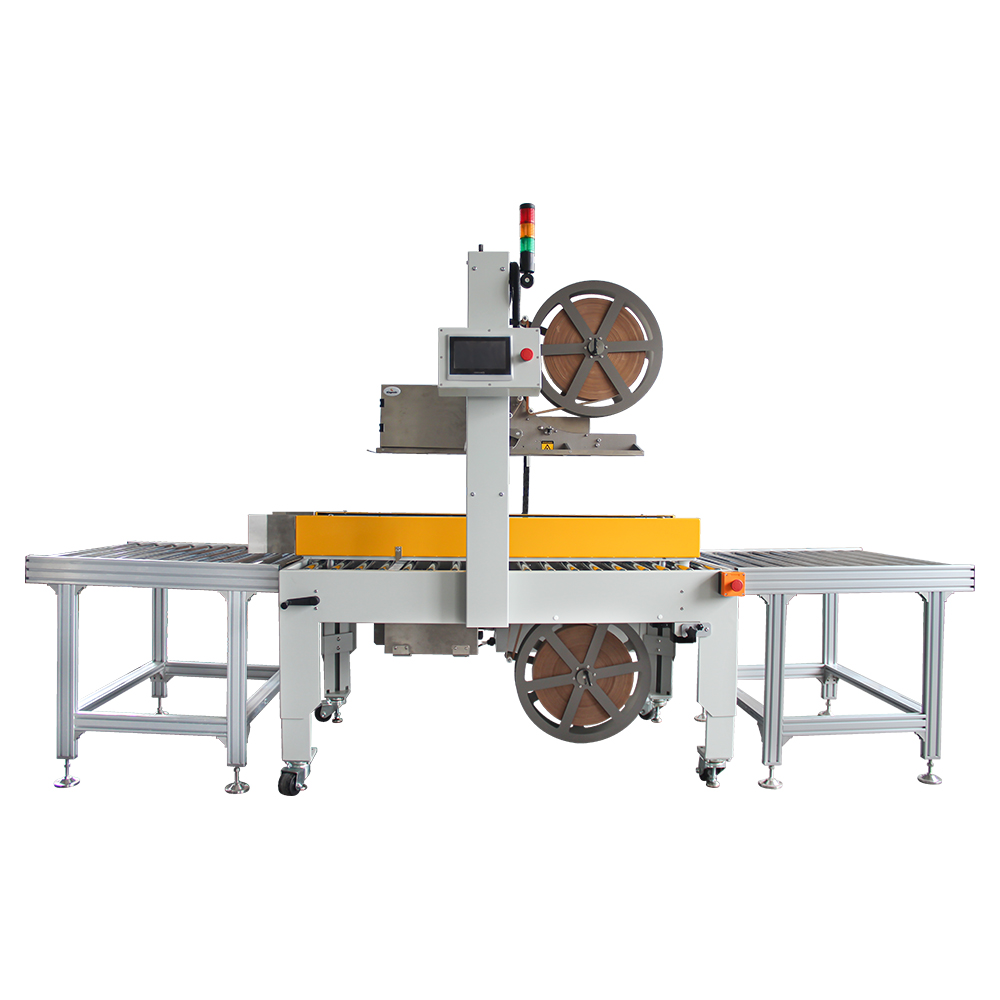

KN-2626U — Heavy Duty Semi-Automatic WAT Case SealerKey Feature: Extended size capacity (up to 66x66cm); Max load 60kgs.
Built for large-scale operations, the KN-2626U is the robust choice for bulky and heavy cartons. With a maximum handling weight of 60kgs and dimensions up to 660mm x 660mm, it outperforms standard sealers. VIEW KN-2626U SPECS → |
 |

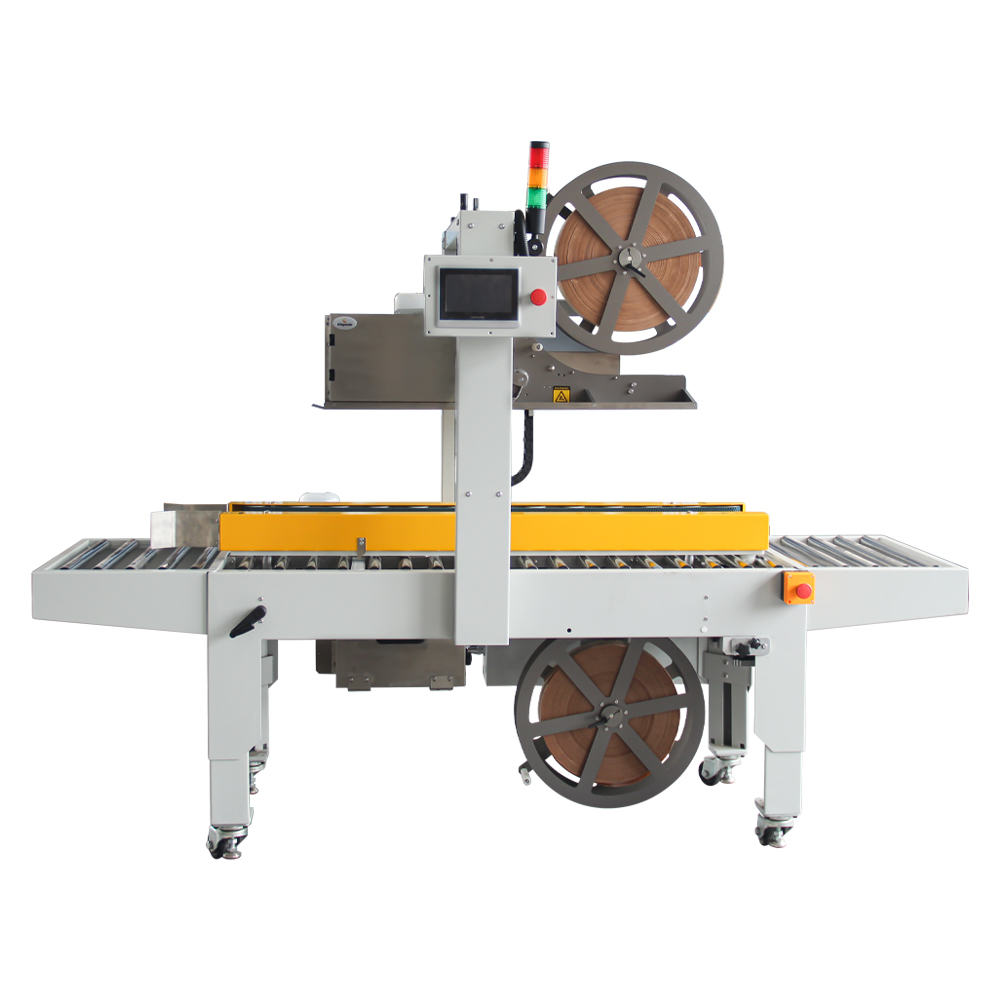

KN-1717U — Standard Semi-Automatic WAT Case SealerKey Feature: Cost-effective reliability; Manual adjustment for standard cartons.
The KN-1717U is the workhorse of the series, designed for consistent, high-quality sealing of standard-sized cartons. With a compact footprint and efficient 1.1kw power consumption, it offers the best value. VIEW KN-1717U SPECS → |
 |
The right machine depends on your line's specific priorities. Use these questions to narrow it down:
Whether your line runs standard parcels, heavy industrial cartons, or requires fully automated handling, the KN WAT case sealer series eliminates bottlenecks and provides a machine tailored to your specific throughput and size requirements.
The KN-1717U, KN-1721R, and KN-2626U all deliver the permanent, fiber-tearing WAT bond that keeps cartons closed from the packing line to the final destination. The question isn't whether WAT is the right seal. It's which machine—standard semi-auto, heavy-duty, or fully automatic—best fits your box mix and operational priorities.
