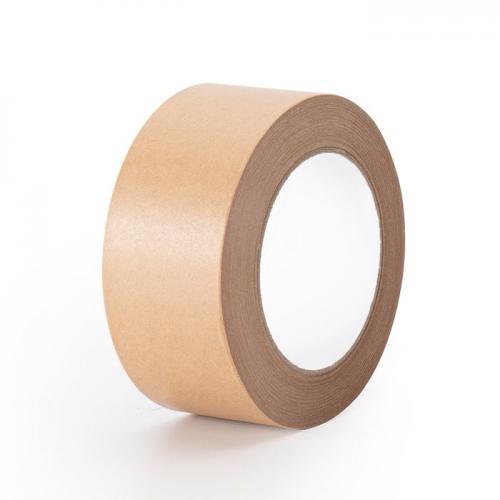

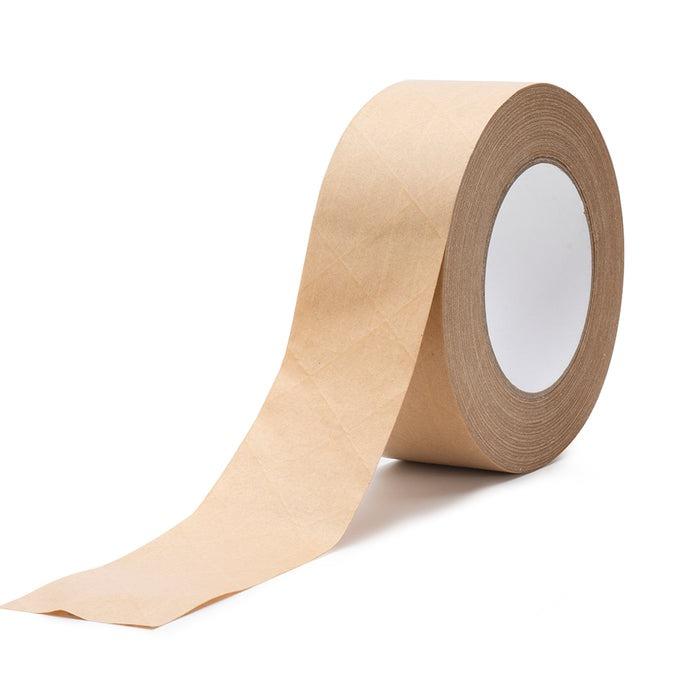

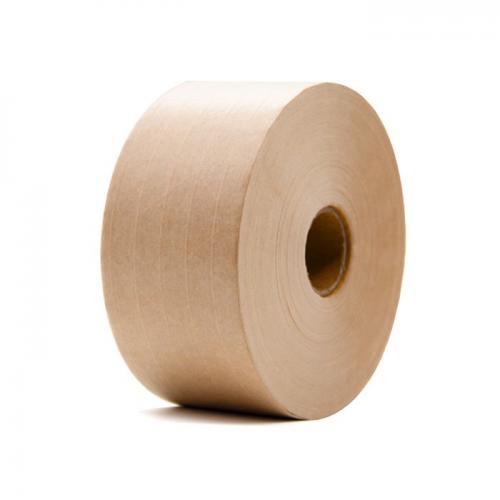

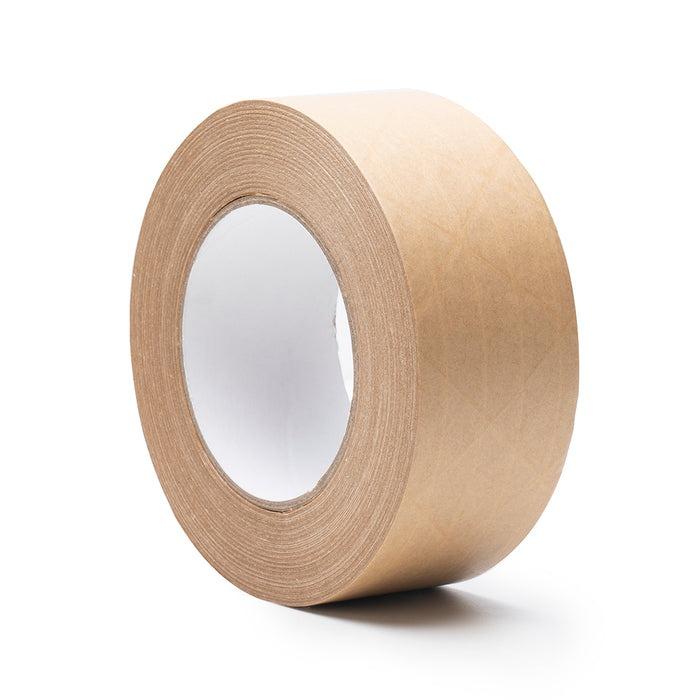

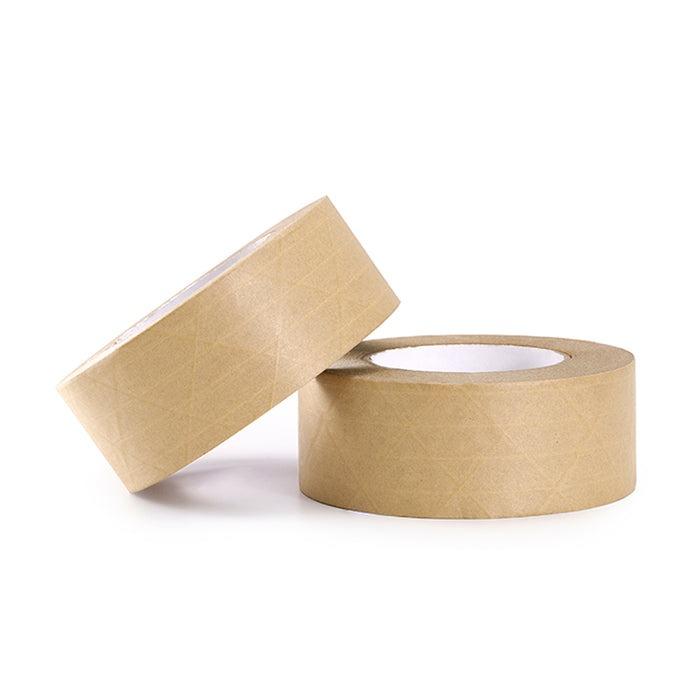

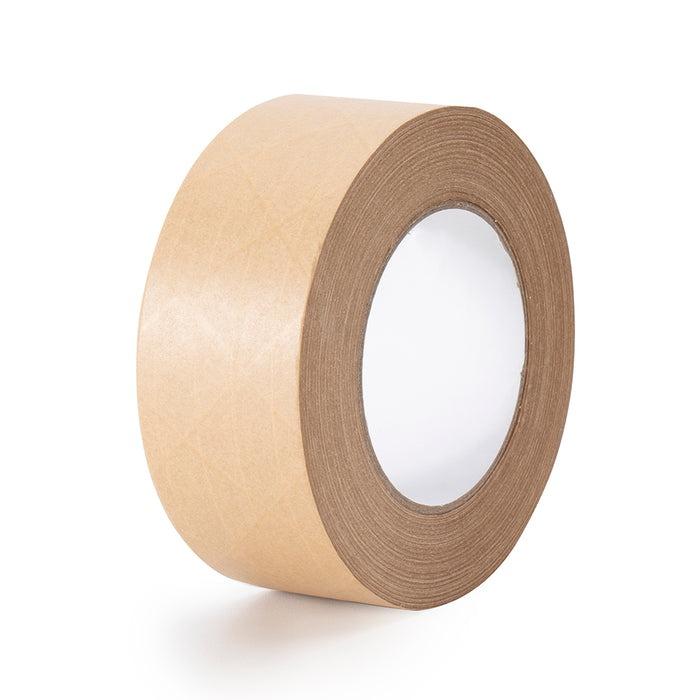

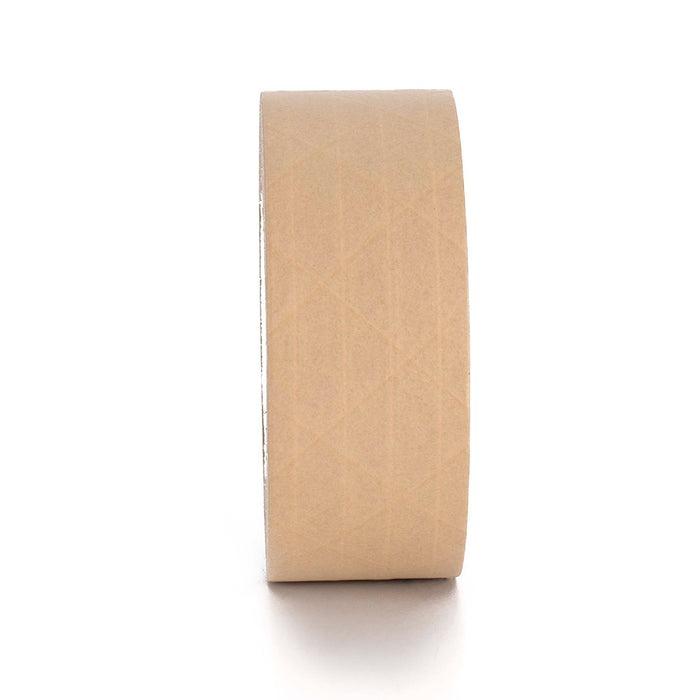

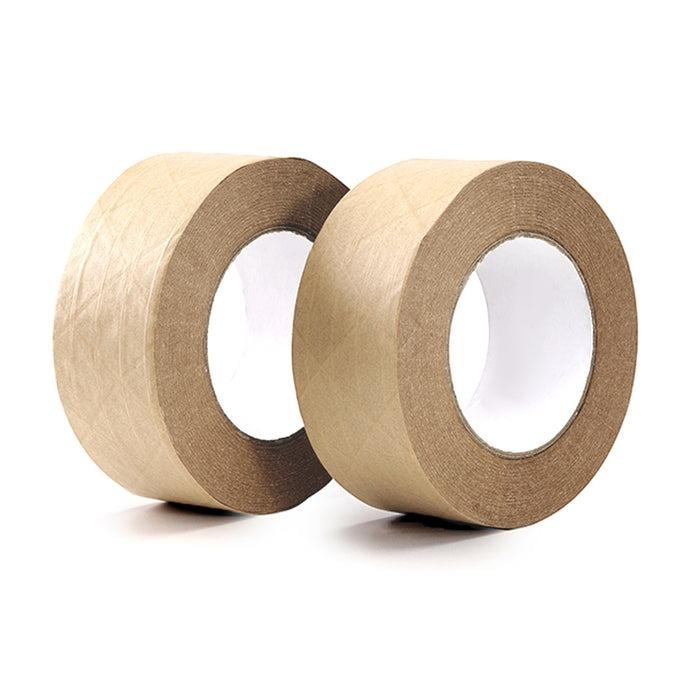

JLN-28160 Plastic Free Self-Adhesive Reinforced Kraft Paper Tape
JLN-28160 is a plastic-free, self-Adhesive kraft paper tape that can be written on with markers. This pressure-sensitive tape provides reliable, quick-to-apply, and cost-effective sealing, making it an efficient solution for packaging lines. Its strong initial tack and excellent sealing performance, combined with unique reinforced fiber technology, deliver greater tensile strength than standard tapes—enhancing security and reducing the risk of tampering or theft.
✔ Plastic-Free
✔ Paper-Stream Recyclable
✔ Smooth Flatback Substrate
✔ Supports Custom Brand Printing
✔ Optimizes Packaging Line Efficiency
✔ Reduces Packaging Waste
JLN-28160 is a plastic-film-free pressure-sensitive kraft paper tape designed to enhance carton security and provide high-strength seals. This product features a writable paper surface, a high-tack adhesive, and proprietary fiber reinforcement technology. It offers superior load-bearing capacity and instant adhesion, providing a robust, durable, and cost-effective sealing solution for standard to heavy-duty packaging lines.
A proprietary fiber-reinforced matrix is embedded in a kraft paper backing. This structure significantly increases its tensile and tear strength compared to standard paper tapes, maintaining seal integrity even under dynamic transport stresses, heavy loads, and rough handling.
The reinforced fiber structure effectively improves tensile strength but cannot be easily torn manually. It can be used with our self-developed KN-80Hi tape dispenser for precise control of the amount used.
The uncoated kraft paper backing allows for writing with markers without ink leakage. Content can be written directly on the seal.
The hot-melt pressure-sensitive adhesive provides strong adhesion immediately upon contact, requiring no hydration, drying, or curing time. It maintains reliable adhesion at standard ambient temperatures.
Product application scenarios
Demonstration of anti-tampering features
| Physical Properties |
Standard | Metric | Test Method | |
|---|---|---|---|---|
| Composite Layer Adhesive |
Polymeric Copolymer | |||
| Adhesive |
Hot Melt Adhesive | |||
| Total Thickness |
6.3 mils | 0.16 mm | ASTM D-3652 / GB/T7125 | |
| Peel Adhesion 90º |
90 oz/in | 25 N/25mm | ASTM D-3759 / GB/T7753 | |
| Holding Power |
24±5 h | 24±5 h | ASTM D-3759 / GB/T7753 | |
| Tensile Strength |
45 lbs/in | 200 N/25mm | ASTM D-3759 / GB/T7753 | |
| Elongation at Break |
3-5% | 3-5% | ASTM D-3759 / GB/T7753 | |
| Service Tem.--Mini |
23℉ | -5℃ | BC/BD-220SE / BC/BD-220SE | |
| Service Tem.--Max |
140℉ | 60℃ | DHG-9055A / DHG-9055A | |
| Reinforcement |
MD | (1-1-1-1-1-1) G110 Fiberglass Yarn per 72mm |
||
| CD | (1-1-1) G150 Fiberglass Yarn, Diamond Pattern, 28mm spacing | |||
| Backing |
Top Ply | 25 lb (40 g/m²) Brown Kraft Paper | ||
| Bottom Ply | 25 lb (40 g/m²) Brown Kraft Paper | |||
Note: All specifications are tested under controlled temperature and humidity conditions (23±2°C, 50±5% RH). Results may vary based on application. Request a free sample to validate performance in your environment.
