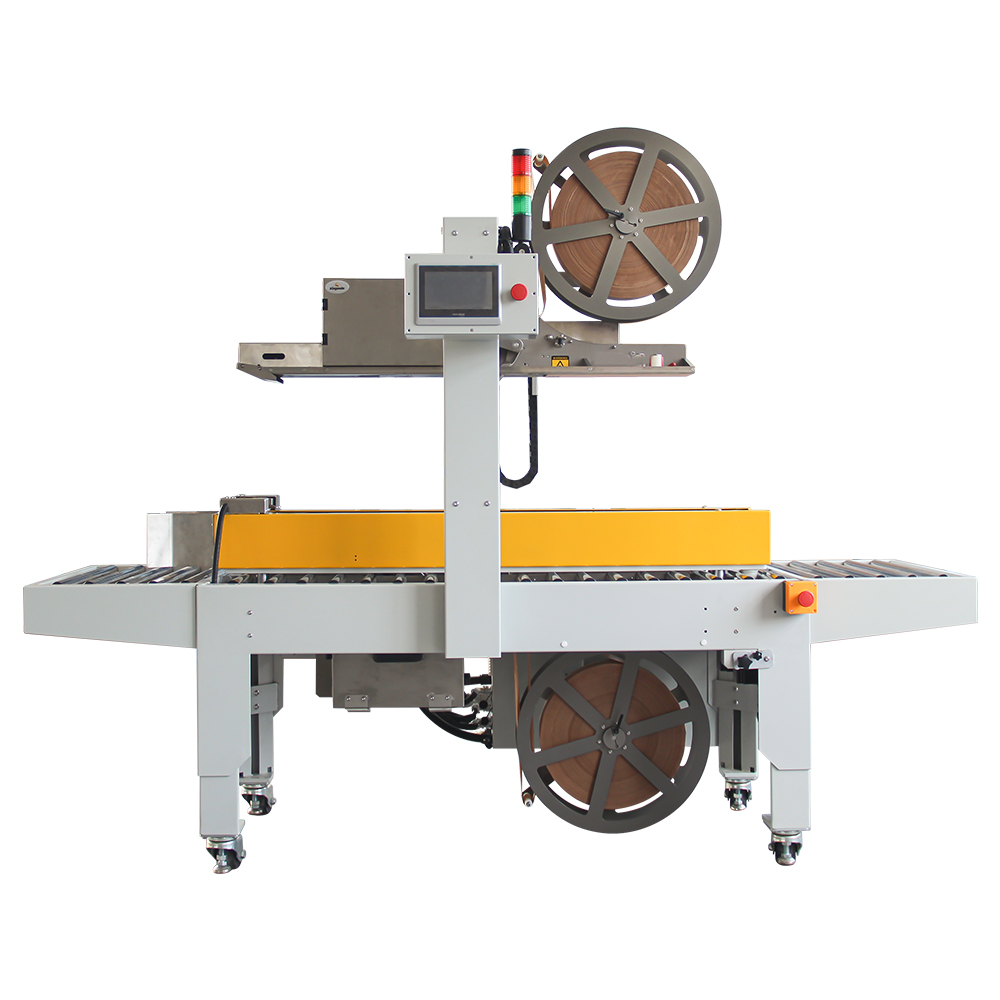

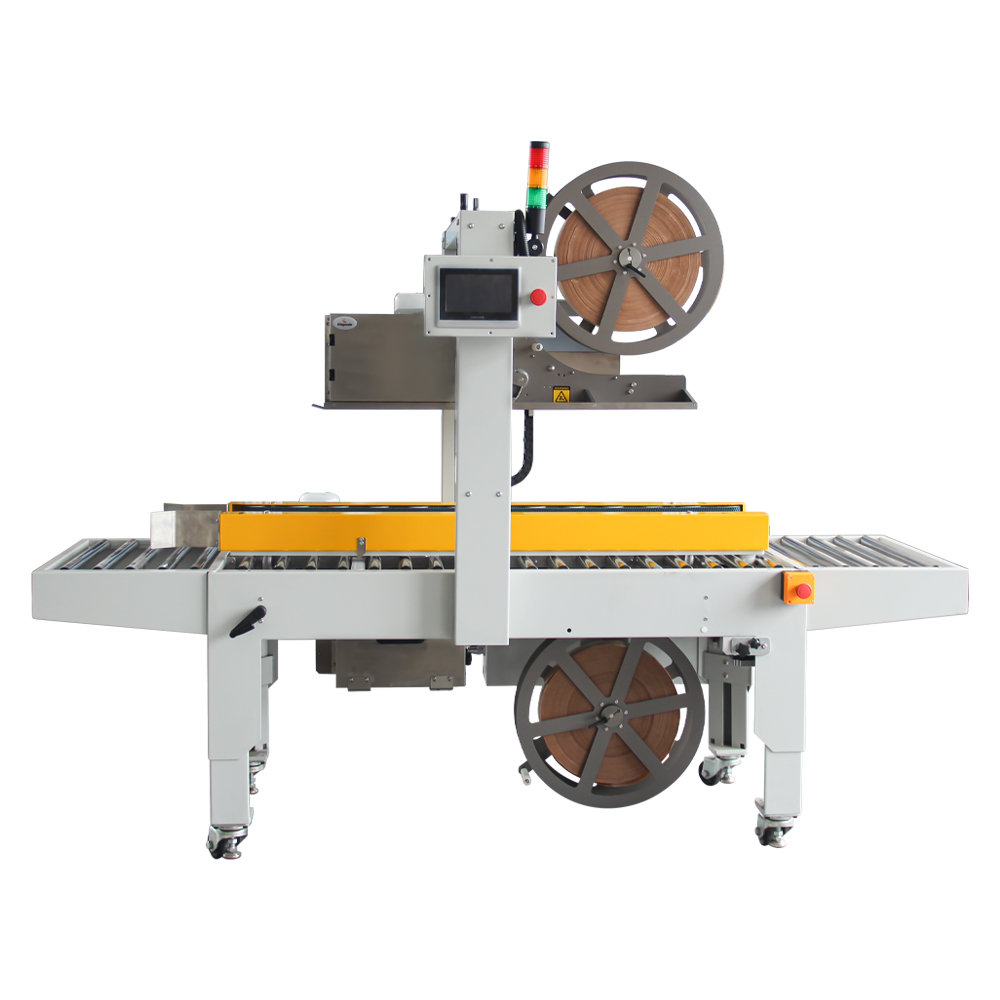

KN-1717U Semi Automated Water-activated Gummed Tape Case Sealer
JL3 offers the KN-1717U, a standard semi-automatic WAT case sealer engineered for consistent, high-quality sealing of regular-sized cartons. Designed for cost-effectiveness and reliability, it is the ideal choice for production lines with stable carton sizes or low-frequency changeovers.
✔ Cost-Effective Reliability Standard Semi-Auto Design
✔ Robust Capacity Handles up to 38kg (Max 43x43cm)
✔ Efficient Throughput 8-13 Cases per Minute
✔ WAT Optimized Dual 2L Water Tanks & Large Roll Support
✔ User-Friendly Setup Easily Removable Infeed/Outfeed Tables
✔ Flexible Mobility Heavy-Duty Casters with Adjustable Legs
✔ Versatile Sealing Top, Bottom, or Top & Bottom Modes
Why Choose JL3® Brand Automatic Slitting Machine ?
Jl3® Automeatic Slitting Machine
JL3 Automatic Case Sealer is a cutting-edge, eco-friendly packaging machine designed for efficient and sustainable carton sealing. It boosts productivity, reduces labor, minimizes material use, and demands low maintenance. This innovative sealer, tailored for water-activated kraft tape, meets the rising demand for eco-conscious tape solutions. JL3 commitment to sustainability and innovation shines through, positioning them as leaders in improving production efficiency and market competitiveness.
| Case Sealer Specifications Comparison | |||
|---|---|---|---|
| Item | KN-1717U Semi-automatic WAT Case Sealer | KN-1721R Fully-automatic WAT Case Sealer | KN-2626U Semi-automatic WAT Case Sealer |
| Photo |  |
 |
 |
| High lights | - | Automatically adapts to box dimensions; Touch control interface. | - |
| Min. Case Size (LxWxH) | 5.9" × 5.9" × 5" (150 mm × 150 mm × 127 mm) |
5.9"×5.9"×8.9" (150 mm×150 mm×225 mm) |
5.9" × 5.9" × 6.7" (150 mm × 150 mm × 170 mm) |
| Max. Case Size (LxWxH) | Inf × 17" × 17" (Inf × 430 mm × 430 mm) |
Inf×17"×21" (Inf×430 mm×530 mm) |
Inf × 26" × 26" (Inf × 660 mm × 660 mm) |
| Carton Size Adjustment | Manual adjustment | Two automatic operation modes | Manual adjustment |
| Sealing Mode | top & bottom sealing, top sealing only, bottom sealing only. |
top & bottom sealing, top sealing only, bottom sealing only. |
top & bottom sealing, top sealing only, bottom sealing only. |
| Case Sealing Speed | 8-13 cases/min (Subject to case size and quality) |
8-13 cases/min (Subject to case size and quality) |
8-13 cases/min (Subject to case size and quality) |
| Case Weight Applicable | max. 85 lbs (38kgs) | max. 85 lbs (38kgs) | max. 132 lbs (60kgs) |
| Tape Width | 2.4" - 3" (60 mm - 76 mm) | 2.4" - 3" (60 mm - 76 mm) | 2" – 3" (50 mm– 76 mm) |
| Max. Tape Diameter | 19.7 inch (500mm), appr.1300m of length | 19.7 inch (500mm), appr.1300m of length | 19.7 inch (500mm), appr.1300m of length |
| Tape Core Diameter | 1.5 inches and 3 inches | 1.5 inches and 3 inches | 1.5 inches and 3 inches |
| Conveyor Belt Speed | 72 ft/min (22 m/min) | 72 ft/min (22 m/min) | 72 ft/min (22 m/min) |
| Conveyor Belt Height | 28" - 32" (71 cm – 82 cm) | 28" - 32" (71 cm – 82 cm) | 28" – 32" (71 cm– 82 cm) |
| Machine Net Weight | 750 lbs (340 kgs) | 860 lbs (390 kgs) | 970 lbs (440 kgs) |
| Machine Dimension (L×W×H) | 93" × 43.9" × 65" (236 cm × 112 cm × 165 cm) |
93" × 43.9" × 65" (236 cm × 112 cm × 165 cm) |
128" × 53" × 70" (326 cm × 135cm × 179cm) |
| Water Tank | 2L x 2 Water Tank | 2L x 2 Water Tank | 2L x 2 Water Tank |
| Power Supply | 110v, 60Hz, 10 Amps, Single Phase or 220v, 50Hz/60Hz, 5 Amps, Single Phase | 110v, 60Hz, 14 Amps, Single Phase or 220v. 50Hz/60Hz, 7 Amps, Single Phase | 110v, 60Hz, 10 Amps, Single Phase or 220v,50Hz/60Hz, 5 Amps, Single Phase |
| Total Power | 1.1kw | 1.5kw | 1.1kw |
| Control Interface | Touch control interface for convenient setting of tape length and other parameters; tracks the number of sealed boxes | ||
| Mobility/Leveling | Heavy-duty casters with adjustable legs to achieve optimal matching and improve efficiency | Heavy-duty casters with adjustable legs to achieve optimal matching and improve efficiency | Heavy-duty casters with adjustable legs to achieve optimal matching and improve efficiency |
| Infeed/Outfeed Tables | Easily removable infeed and outfeed tables for convenient case sealing operations | Easily removable infeed and outfeed tables for convenient case sealing operations | Easily removable infeed and outfeed tables for convenient case sealing operations |
| Carton Stability | Side belt drive mechanism holds the box between two conveyor belts to ensure carton stability | ||
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
JL3 offers the KN-2626U, a heavy-duty semi-automatic WAT case sealer engineered ...

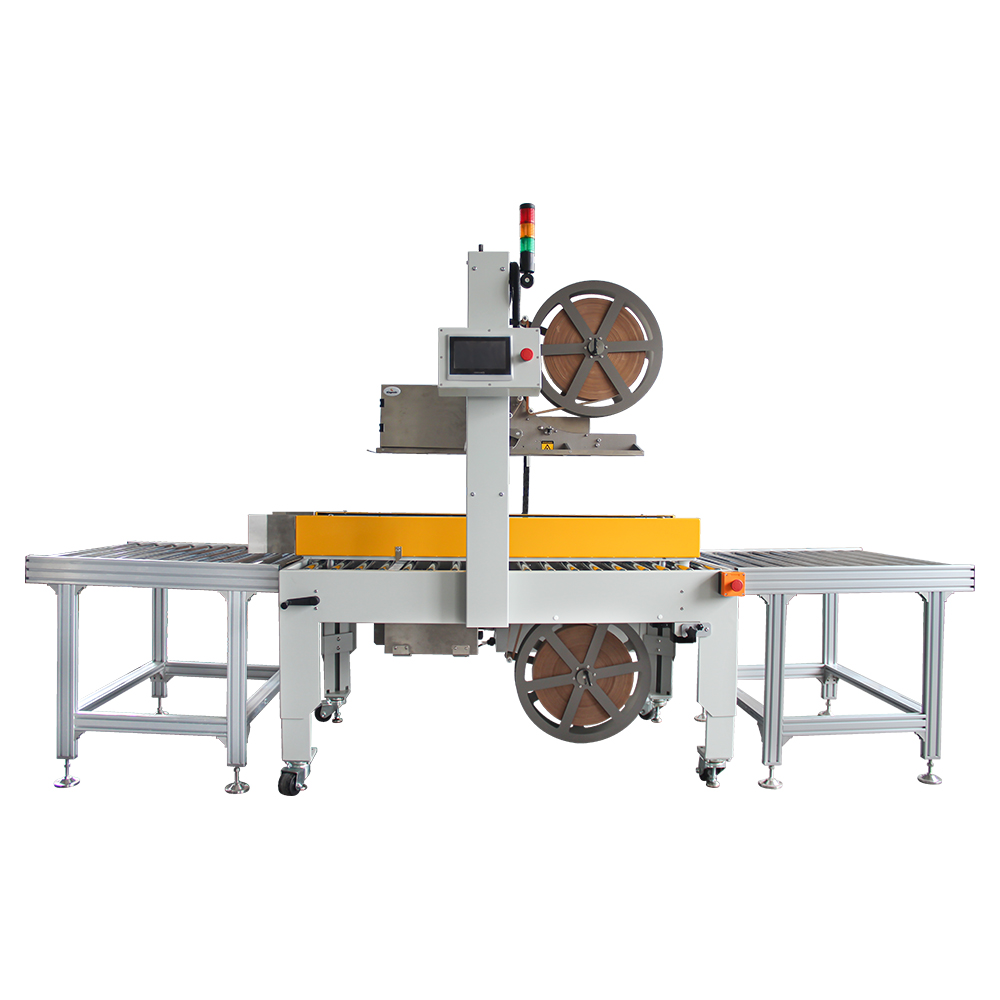

JL3 offers the KN-1721R, a fully-automatic WAT case sealer engineered for operat...
