High Strength Strapping Filament Tape JLT-695

JLT-695 Backed with PET film and reinforced with glass fiber. It’s high strength mono-directional filament tape with good resistance to abrasion, oil and high temperature; Total thickness is 0.15mm, Tensile Strength: 214 lbs/in ; Suitable for transformers, coils and motor parts strapping and fixing.
  • Item No.:

    JLT-695
  • Backing:

    PET
  • Reinforcement:

    Fiberglass
  • Adhesive:

    Synthetic Rubber
  • Tensile Strength:

    214 lbs/in
  • Total Thickness:

    5.5 mils/0.14 mm
  • Peel Adhesion:

    94 oz/in
  • Product Details

Description of Fiberglass Reinforced Strapping Tape

JLT-695 filament tape backed with PET film and reinforced with glass fiber. It’s high strength mono-directional filament tape with good resistance to abrasion, oil and high temperature. Suitable for transformers, coils and motor parts strapping and fixing. It’s oil compatible. For applications requiring adhesion to oily surfaces, ideal for bundling and wrapping applications on heavy gauge metals or applications that might become exposed to oil.


Parameter of Fiberglass Reinforced Strapping Tape

Physical Properties Standard Metric Test Method
Reinforcement Fiberglass
Adhesive  Acrylic Pressure-Sensitive Adhesive
Backing PET
Color Clear
Total Thickness 5.9 mils 0.15 mm ASTM D-3652 GB/T7125
Peel Adhesion 58 oz/in  16N/25mm  ASTM D-3330  GB/T2792
Holding Power ≥24 h ≥24 h ASTM D-3654  GB/T4851
Tensile Strength 214 lbs/in 950N/25mm ASTM D-3759 GB/T7753
Elongation at Break 3% 3% ASTM D-3759  GB/T7753
Service Tem.--Mini 23 -5 BC/BD-220SE BC/BD-220SE
Service Tem.--Max 302 150 DHG-9055A DHG-9055A



Performance of Fiberglass Reinforced Strapping Tape

JLT-695 is a transparent and high strength filament tape. Glass fiber contributes higher tensile strength and improved pressure-sensitive adhesive delivers high viscosity and tensile strength; high resistance to abrasion; impact resistance and high holding power.



Application of Fiberglass Reinforced Strapping Tape

JL3 brand filament tapes are used in many different applications in various markets. The product line includes general purpose and specialty tapes in both synthetic rubber and hot melt adhesive to cover the broadest scope of applications. From general strapping and bundling, to applications where clean-removability is a requirement, JL3 has a tape that will meet the performance requirements.


JLT-695 filament tape is suitable for transformers, coils and motor parts strapping and fixing. It’s oil compatible. For applications requiring adhesion to oily surfaces, ideal for bundling and wrapping applications on heavy gauge metals or applications that might become exposed to oil.




Related Products (Similar Item Or Complementary Item)

Other JL3 Brand Mono-directional / General Purpose/ Filament Tape

SR: Synthetic Rubber

Item No.

Adhesive

Backing / Reinforcement

Color

Thickness

Peel Adhesion

Tensile Strength

mm

mils

N/in

oz/in

N/in

lbs/in

JLT-611A

SR

PET / Fiberglass

Clear

0.10

3.9

25

90

400

90

JLT-602C

SR

BOPP / Fiberglass

Clear

0.11

4.3

22

79

500

112

JLT-602

SR

PET / Fiberglass

Clear

0.10

3.9

23

83

550

124

JLT-605

SR

BOPP / Fiberglass

Clear

0.12

4.7

23

83

550

124

JLT-605A

SR

PET / Fiberglass

Clear

0.14

5.5

23

83

570

128

JLT-602A

SR

PET / Fiberglass

Clear

0.15

5.9

25

90

850

191

JLT-607D

SR

PET / Fiberglass

Milk White

0.14

5.5

26

94

950

214

JLT-695

Acrylic

PET / Fiberglass

Clear

0.15

5.9

16

58

950

214

1) JLT-611A: Box closing, palletizing, strapping, bundling and reinforcing; Utility.

2) JLT-602C, JLT-602, JLT-605, JLT-605A: Box closing, palletizing, strapping, bundling and reinforcing; Economic.

3) JLT-602A: Heavy box closure, general bundling and reinforcing, metal coil closure, pipe bundling; medium strength.

4) JLT-607D, JLT-695: Heavy box closure, general bundling and reinforcing; White boxes, color coding.

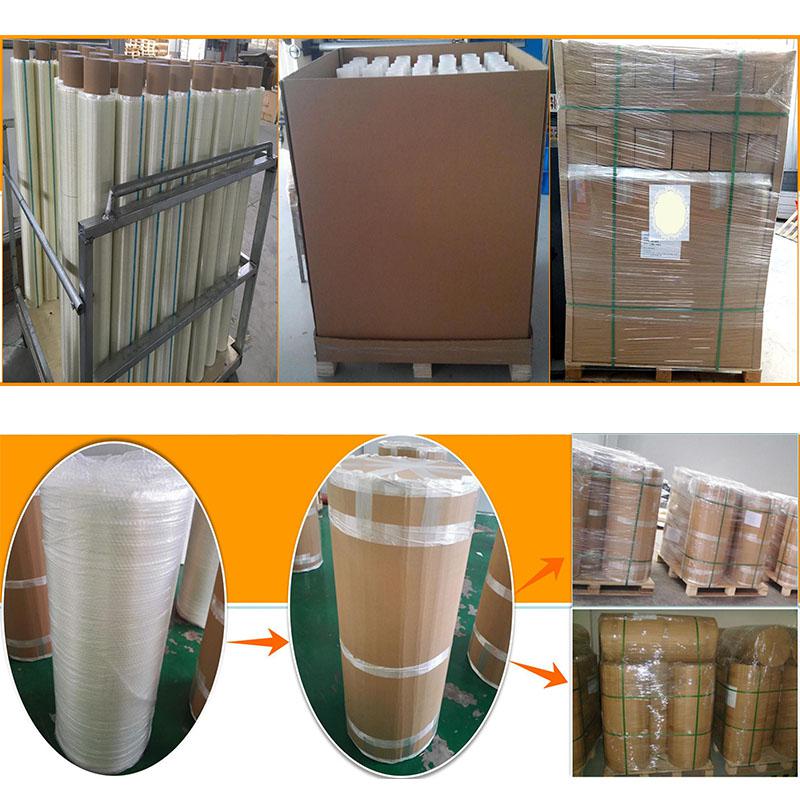

Packaging of Fiberglass Reinforced Strapping Tape


Finished Roll of Filament Tape:



1/2” X 60 yards (12mmX55m) rolls: 72 rolls per case, 128 cases per pallet;

3/4” X 60 yards (18mmX55m) rolls: 48 rolls per case, 128 cases per pallet;

1” X 60 yards (24mmX55m) rolls: 36 rolls per case, 128 cases per pallet;

1 1/2” X 60 yards (36mmX55m) rolls: 24 rolls per case, 128 cases per pallet;

2” X 60 yards (48mmX55m) rolls: 24 rolls per case, 96 cases per pallet.


We use plastic bags and high quality corrugated cases to pack the filament tapes.



Log Roll of Filament Tape:


1020mmX55m: 88-105 rolls per pallet.


Jumbo Roll of Filament Tape:


1020mmX1000m:5-8 rolls per pallet.






FAQ

Q1: What’s your port of loading?

Xiamen, China or Shanghai, China.


Q2: What’s your MOQ?

Our MOQ is 10,000 square meters an order.


Q3: Do you offer custom printing for the tape?

Yes, we have our own high standard printing machine to meet your every printing requirement.
