Flame Retardant Acrylic Fiberglass Cloth Tape

Thickness: 7.8 mils / Tensile: 90 lbs/in
  • Brand:

    JL3
  • Item No.:

    JLW-396FR
  • Color:

    White and Blue
  • Adhesive:

    Acrylic
  • Backing :

    Fiberglass Cloth
  • Reinforcement:

    Fiberglass Cloth
  • Product Details

Product Features



JLW-396FR is white and blue tape with high strength. It's characterized by anti-abrasion and flame retardant. In case of fire, it can insulate the rest part of aircraft so as to prevent the spread of fire. It meets the requirements of flame retardant standards in the aircraft cabins. Quick and even adhesive to the surface of cabin panels.


TDS


Physical Properties Standard     Metric Test Method
Reinforcement Fiberglass Cloth
Adhesive Acrylic Pressure-Sensitive Adhesive
Backing Fiberglass Cloth
Color White and Blue
Total Thickness 7.8 mils 0.20 mm ASTM D-3652 GB/T7125
Peel Adhesion 90°  50 oz/in 14 N/25mm ASTM D-3330  GB/T2792
Holding Power ≥10 h
≥10 h ASTM D-3654  GB/T4851
Tensile strength 90 lbs/in 400 N/25mm ASTM D-3759 GB/T7753
Elongation at break 5-7% 5-7% ASTM D-3759  GB/T7753
Service Tem. - Mini 23℉ -5℃ BC/BD-220SE BC/BD-220SE
Service Tem. - Max  212℉ 100 DHG-9055A DHG-9055A



Product Application


It is mainly designed for the application of flame retardant liquid cabin of cargo aircraft and in sealing aircraft cargo panels and its relavant maintenance, repair and operating (MRO) in aviation.




Other Related Products





· JLW-308: Will be sticky when it is heated; Good wear resistance, applied in the internal fastening of high voltage cable etc.

· JLW-325, JLW-329, JLW-306: Heavy box closure, splicing, general bundling and reinforcing, sealing edge of special woven bag sealing edge, metal coil closure, pipeline bundling etc.

· JLW-2070: Heavy box closure, palletizing, strapping, bundling and reinforcing etc.

· JLW-396FR: Fiberglass cloth tape, is made of flame retardant acrylic adhesive, which provide excellent flame retardant properties ; Mainly designed for the application of aircraft cargo and other maintenance, repair and operating (MRO); It is normally applied in sealing aircraft cargo panels.

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products

When tomorrow turns in today, yesterday, and someday that no more important in your memory, we suddenly realize that we are pushed forward by time.

Eco Friendly Water Activated Reinforced Gummed Tape
Water Activated Paper Tape With 5 Nylon Yarn
Thickness: 6.7 mils / Tensile MD:  185 N/25mm
Double-Sided Filament Tape JLW-315C
Double Sided Acrylic Adhesive Filament Tape
Thickness: 12.5 mils / Tensile: 67 lbs/in
Double-Sided Filament Tape
High Strength Cross Weaved Double Sided Filament Tape
Thickness: 11.8 mils / Tensile: 67 lbs/in
Residual Free Filament Tape
High Strength Residue Free Filament Tape
Thickness: 6.3 mils / Tensile: 157 lbs/in
Repulpable Gummed Paper Tape
Eco Friendly Water Activated Gummed Tape
Thickness: 4.7 mils / Tensile MD: 39 lbs/in
Filament tape (Chemical fiber)  manufacturer
Heavy Duty High Elongation Strapping Filament Tape
Thickness: 6.7 mils / Tensile:  202 lbs/in
Water-Aactivated Paper Tape Dispenser
Electric Water Dispenser With Battery & Heater
Type: Electronic Gummed Tape Dispenser (Larger Size With Heater)

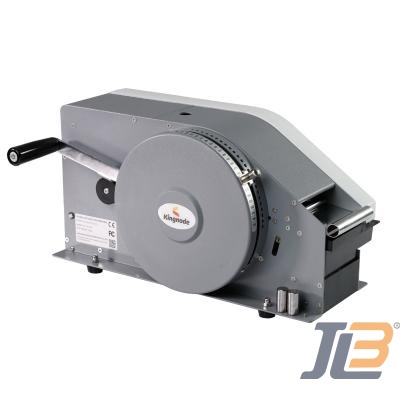

Manual WAT Dispenser
